Features
- Width: 49.0
- Weight: 400.0
- Shape: Bar
- Metal: Steel
Features and Benefits:

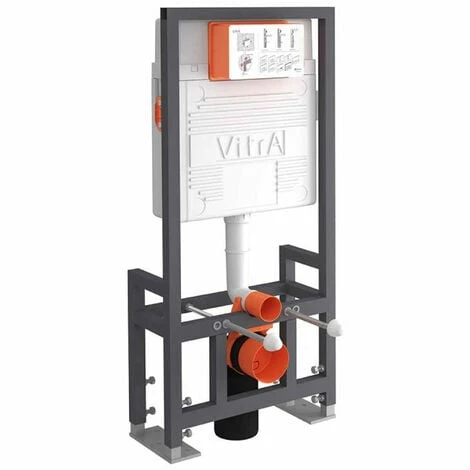

- 3/6 litres concealed cistern
- Working Pressure 0.5 – 10 Bar
- Pipe is hidden behind the wall and the WC is lifted above the floor, providing a smoother and easier cleaning area
- The flush plate can be easily removed, providing ready access to internal fittings
- This concealed cistern installation offers flexibility in confined spaces
- Concealed frames and wall hung WC pans have been designed to support weights of up to 400kg
- Vitra test each and every cistern individually to ensure that it is 100% watertight
- The overflow pipe located within the valve is the products safety device
- The pipes performance is tested according to the standards of water flow
- The amount of water used during flushing is pre-determind to meet industry standards
- Products are tested to ensure that they operate perfectly before being passed
- Supplied with a 5 year guarantee from the manufacturer
You Should Know:
- Flush Plate and Toilet Pan sold separately (Available in our Store)

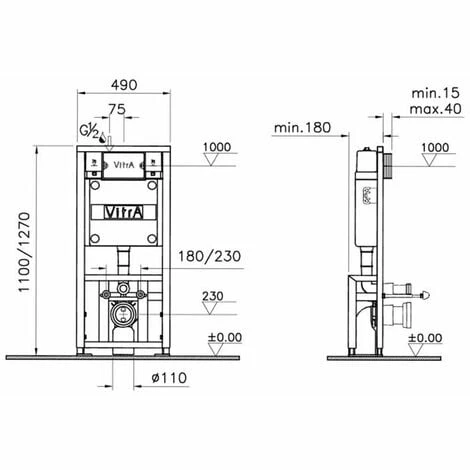

| Wall Hung Frame Type | Toilet |
|---|---|
| Frame Height | 1100 / 1270mm |
| Frame Width | 490mm |
| Wall Hung Frame Includes | Concealed Cistern |
| Style | Modern |
| Market | Domestic |
| Cistern Half Flush | 3 Litre |
| Cistern Full Flush | 6 Litre |
| Working Pressure | 0.5-10 Bar |
| Colour/Finish | Dark Grey |
| Material | Steel |
| Manufacturer Part Number(s) | 742-4800-01 |
